FLAMINGO series
Embrace the sun
power a zero-carbon future

Download

GK-2-66HTBD

700 W

Maximum power

22.5 %

Maximum efficiency

12 years

Product warranty

30 years

Power warranty

GK-2-66HTBD
700 W

Maximum power
22.5 %

Maximum efficiency
12 years

Product warranty
30 years

Power warranty

Same series products

Embrace the sun, power a zero-carbon future

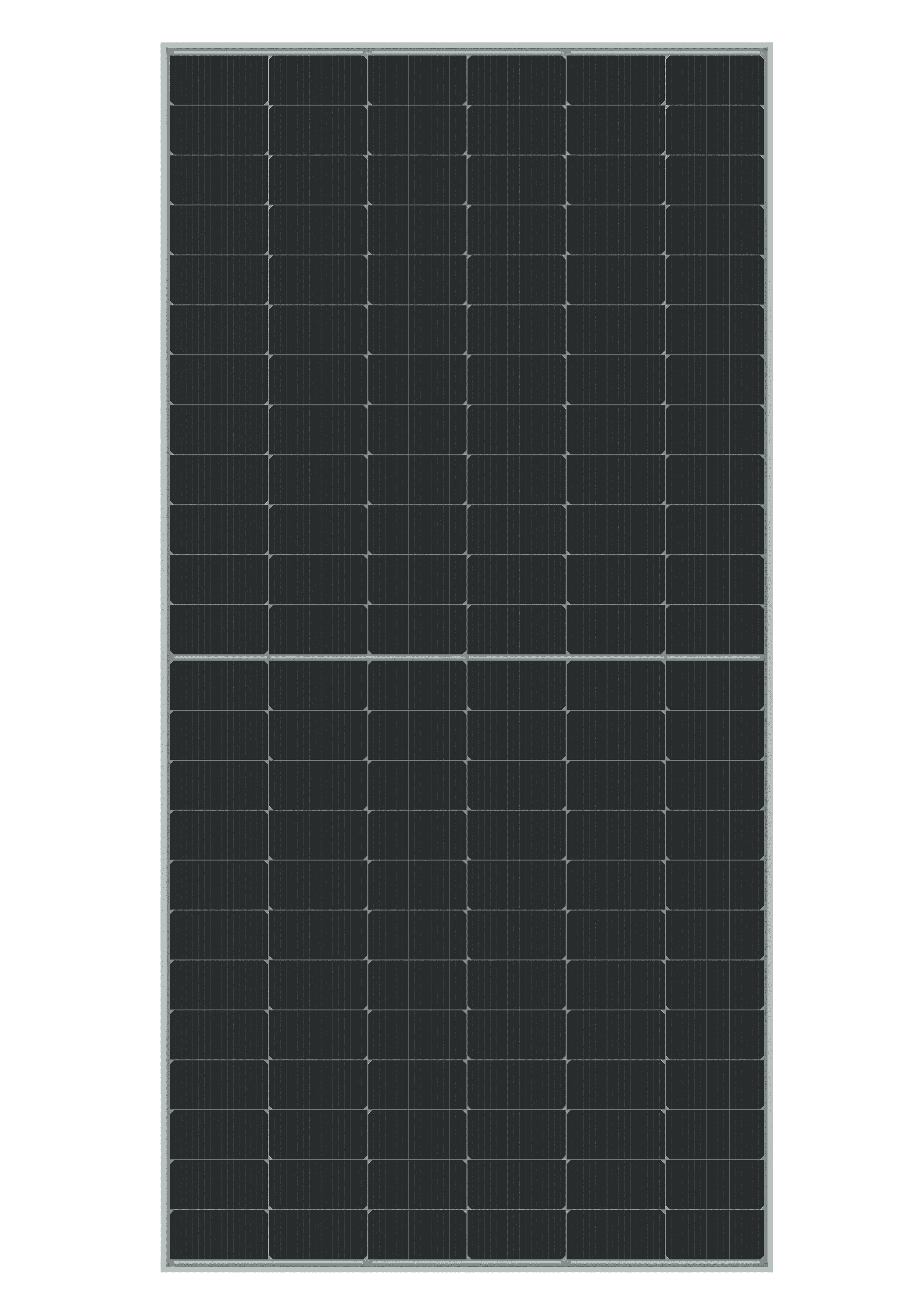

FLAMINGO M10-156D

Cell type: N-Type

Maximum power: 630W

Conversion efficiency: 22.5%

Download

FLAMINGO M10-144D

Cell type: N-Type

Maximum power: 590W

Conversion efficiency: 22.8%

Download

FLAMINGO G12-132D

Cell type: N-Type

Maximum power: 700W

Conversion efficiency: 22.5%

Download

Product advantages

Embrace the sun, power a zero-carbon future

High efficiency

High efficiency and high bifaciality
Anti-PID performance

Excellent anti-PID performance
More durable

Better weather resistance and longer durability
Extended Warranty

15-Year Product Warranty, Extendable to 25 Years; 30-Year Power Warranty.

Mechanical Parameters

Item

Specifications
Cell Type

N-Type TOPCon
No. of cells

132(2x66)
Dimension

2384x1303x33mm
Weight

37.1 kg
Glass

Front: 2.0mm,semi-tempered
Rear: 2.0mm, semi-tempered
Frame

Anodized aluminum alloy frame

Item	Specifications
Cell Type	N-Type TOPCon
No. of cells	132(2x66)
Dimension	2384x1303x33mm
Weight	37.1 kg
Glass	Front: 2.0mm,semi-tempered Rear: 2.0mm, semi-tempered
Frame	Anodized aluminum alloy frame

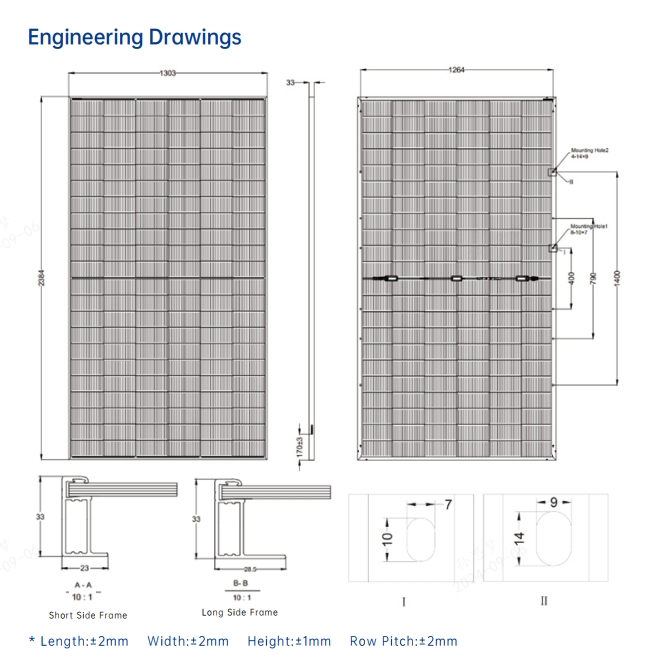

Dimensional drawing

Electrical performance parameters (STC test)

Component model

GK-2-66HTBD-695M

GK-2-66HTBD-700M
Maximum Power
(Pmax/W)

695

700
Open Circuit Voltage
(Voc/V)

47.50

47.90
Short-circuit Current
(lsc/A)

18.05

18.08
Peak Power Voltage
(Vmp/V)

40.86

41.10
Peak Power Current
(Imp/A)

17.01

17.04
Module Efficiency
(%)

22.4

22.5

Component model	GK-2-66HTBD-695M	GK-2-66HTBD-700M
Maximum Power(Pmax/W)	695	700
Open Circuit Voltage(Voc/V)	47.50	47.90
Short-circuit Current(lsc/A)	18.05	18.08
Peak Power Voltage(Vmp/V)	40.86	41.10
Peak Power Current(Imp/A)	17.01	17.04
Module Efficiency(%)	22.4	22.5

Load capacity

Front Side Maximum Static Loading

5400Pa
Rear Side Maximum Static Loading

2400Pa
Hailstone Test

25mm hailstone at 23m/s

Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm hailstone at 23m/s

Temperature coefficient (STC test)

Temperature coefficient of lsc

+0.045%/C
Temperature coefficient of Voc

-0.25%/C
Temperature coefficient of Pmax

-0.29%/℃

Temperature coefficient of lsc	+0.045%/C
Temperature coefficient of Voc	-0.25%/C
Temperature coefficient of Pmax	-0.29%/℃

Application Cases

Fishery-PV Complementary Power Generation Project In Zhuhai, Guangdong

Zhuhai, Guangdong

400MW

Project capacity

Ground-mounted PV Project in Yibin, Sichuan

Yibin, Sichuan

25MW

Project capacity

Aosen Group Commercial & Industrial Rooftop PV Project

Xinji, Hebei

39MW

Project capacity
